Power Supply

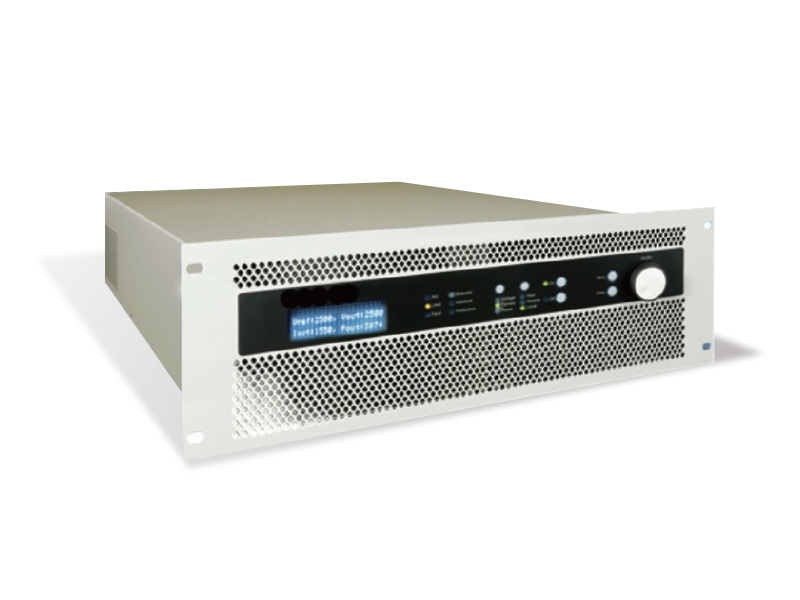

PDC-15kW

High Power Supply for Plasma

Model PDC-15kW
Input GPS Voltage 3 Phase, 220 ¡¾ 10% VAC
Input UPS Voltage 1 Phase, 220 ¡¾ 10% VAC
Frequency 50 / 60 Hz
Current rating 60 A
Output Max. Power 15 kVA
Max. Voltage 5 ~ 14 kVp
Frequency 10 ~ 30 kHz
Cooling Forced air-cooling
Mode setting Voltage regulation mode
Interface mode Analog interface, Interface board (Run/Stop interlock)
Display VFD LCD
Dimensions 440(W)¡¿760(D)¡¿530(H)
HV cable Double-silicon insulated cable

GPS
Power Supply

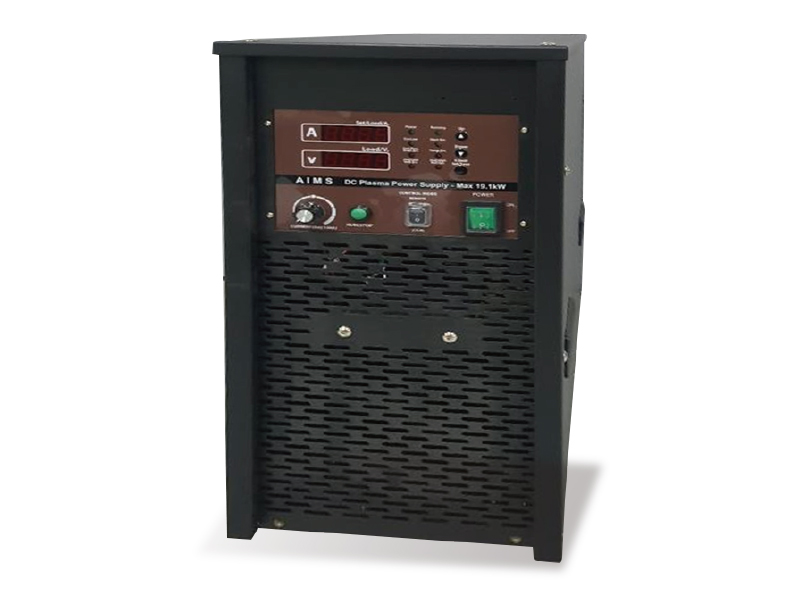

AP-1001000

High Power Supply for Plasma

Model AP-1001000
Input Voltage 3 Phase 220 ¡¾ 10% VAC, 50 / 60Hz
Maximum Input Current 59 A / 22.9 kVA
No-load Voltage VDC 900 V
Load Voltage VDC 60 ~ 300 V
Output Current 20 ~ 100 A
Maximum Output / Power[Max Out Power] 19.1 kW
Power Conversion Efficiency 98 %
Dimension 250(W) x 640(D) x 595(H)
Control Method Inverter (Constant current feedback control)
Cooling System / PCW Fan forcibly cooled / Simultaneous coolant and cooling ( 1.5 ~ 2kg/cm2 > 7LPM )
Ignition 14~16 kV / 1Mhz (Normal automatic load cut off)
Operation Mode Local / Remote
